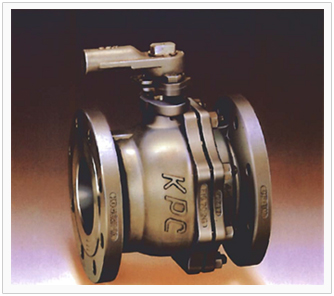

| Side Entry 2 Piece Floating Ball Valve |
|
 |
Side Entry 2 Piece Floating Ball Valve(FLO-MAX) : |
Floating Ball Design
ANSI 150-300
2 Piece Split Body, Full Bore, Reduced Bore,
End Connection : RF, RTJ, BW Type, Hub.
Actuation : Lever, Gear, pneumatic, electric, hydraulic actuator
Anti-Static, Fire Safe API 6FA & API 607
Size : 1/2" inclusive through to 12"
Temperature : -196° C ~ 450° C (-320° F ~ 850° F) |
|
|
| Forged Side Entry 2 Piece Ball Valve |
|
 |
Side Entry 2 Piece Ball Valve |
ANSI Class-150-300-600-900-1500-2500
2 Piece Split Body, Full Bore, Reduced Bore,
End Connection : RF, RTJ, BW Type, Hub.
Actuation : Lever, Gear, pneumatic, electric, hydraulic actuator
Anti-Static, Fire Safe API 6FA & API 607
Size : 1/2" inclusive through to 36"
Temperature : -196° C ~ 450° C (-320° F ~ 850° F) |
|
|

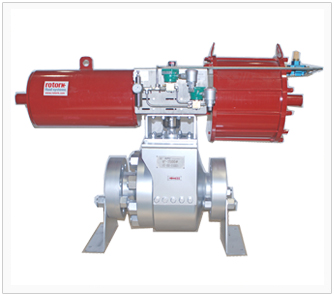

| Side Entry 2 Piece Trunnion Mounted Ball Valve |
|
 |
2 Piece Side Entry Trunnion Mounted Ball Valve |
ANSI Class-150-300-600-900-1500-2500
Size: 2" inclusive through to 48"
End Connection : RF, RTJ, BW Type, Hub.
Actuation: Gear, Pneumatic, Electric, Hydraulic
Temperature: -196°C ~ 450° C (-320° F ~ 850° F) |
|
|
| Side Entry 3 Piece Trunnion Mounted Ball Valve |
|
 |
Side Entry Trunnion Mounted Ball Valve : |
Class ANSI 150-300-600-900-1500-2500
3 Piece Split Body Design, Reduced and Full Bore,
Size: 6" inclusive through to 60”
End Connection : RF, RTJ, BW Type, Hub.
Actuation: Gear, Pneumatic, Hydraulic, Electric.
Fully Certified in accordance with API 6D
Antistatic, Fire Safe API 6FA, & API 607
Sour Service Requirements to NACE MR 0175 |
|
|
|
|
